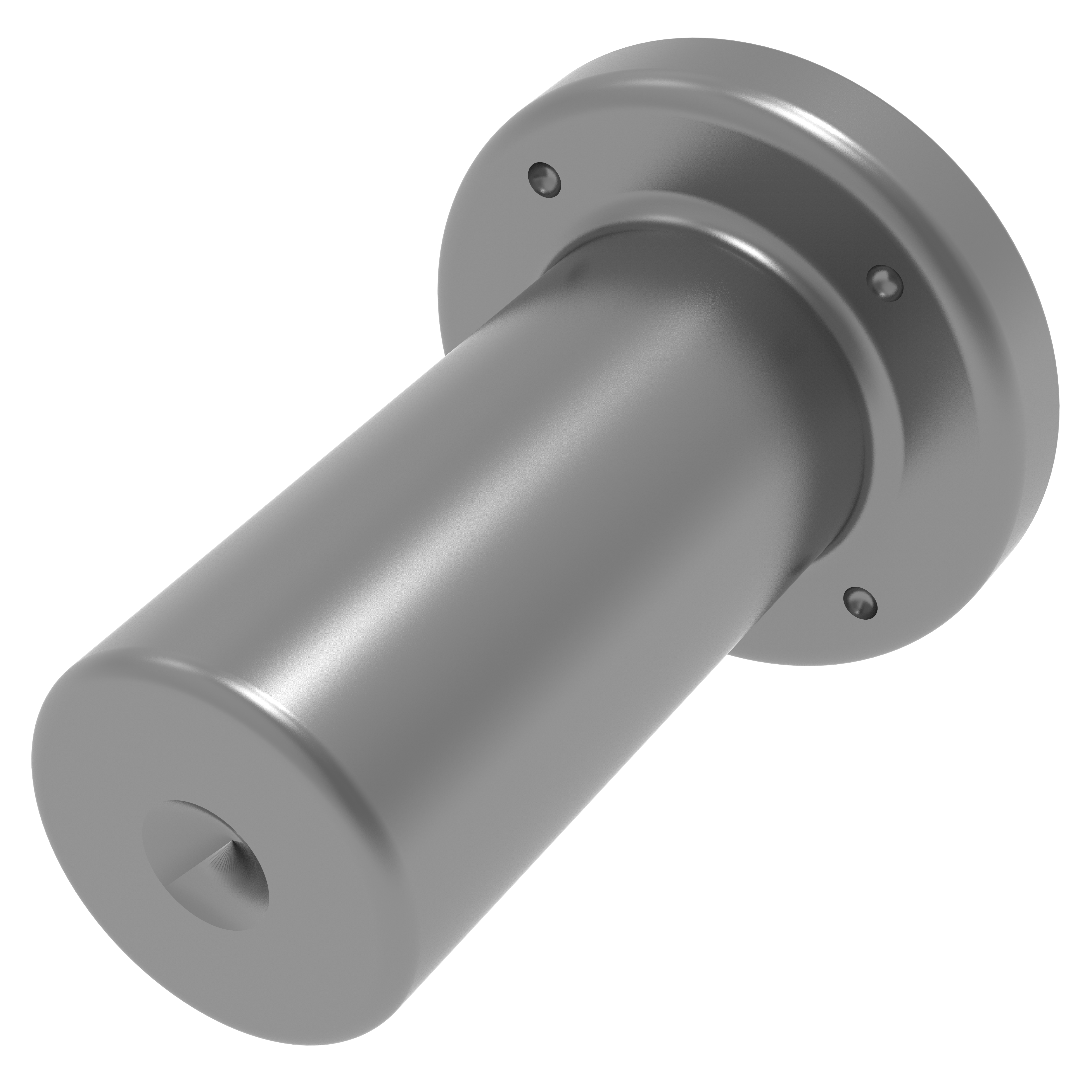

BFS-M8-2
Self-Clinching Blind Fasteners – Types BF, BFS
BFS-M8-2
Self-Clinching Blind Fasteners – Types BF, BFS
Our new fine finish BFS™ self clinching blind nuts are engineered specifically for better performance in soft copper and aluminum busbar applications without fear of chips or fines. The larger flange design provides greater bearing surface – delivering secure thread retention without damaging or deforming the panel during installation.
规格
- 螺纹代码
- M8
- 柄端代码
- 2
- 适用板材硬度
- HRB 70 / HB 125 or less
- 产品类型
- Self-Clinching Blind Fasteners – Types B, BS – Metric
- 螺纹类型
- Internal
- Hole Size in Sheet +.003 / +0.08mm_mm
- 12.7mm
- PEM产品系列
- B
- 产品类型
- 螺母

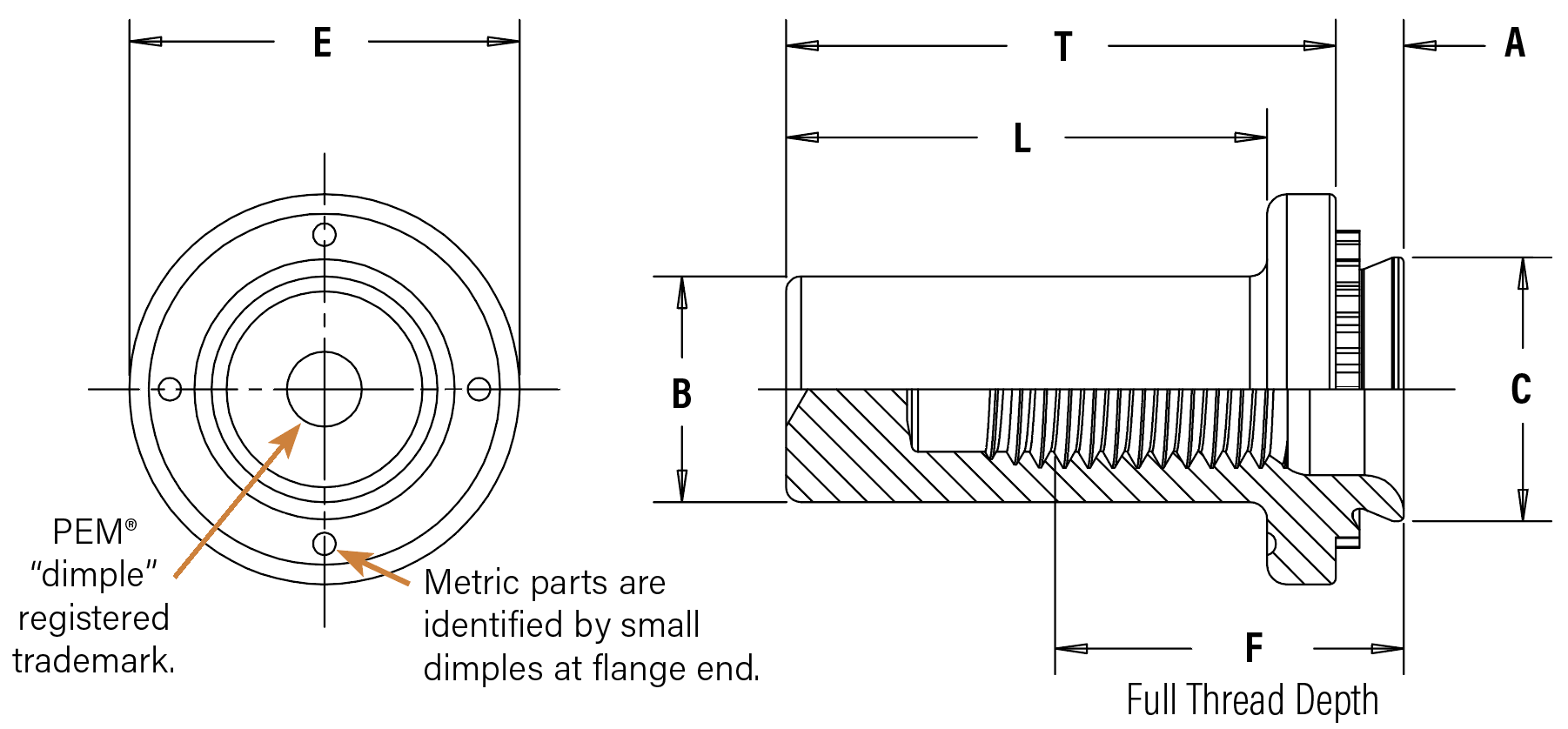

- B最大_毫米
- 11.7mm
- E ± 0.25_mm
- 16.35mm
- F Min._mm
- 13.5mm
- 板材开孔尺寸 + 0.08_mm
- 12.7mm
- L Max._mm
- 19mm
- 最小孔边距_mm
- 13.5mm
- C 最大_毫米
- 12.67mm
- T ± 0.25_mm
- 22mm
资源
安装&性能数据
| Type | Thread Code | Shank Code | Test Sheet Material | Haeger Part Number Anvil | Haeger Part Number Punch | Pemserter Part Number Anvil | Pemserter Part Number Punch | Installation (kN) | Pushout (N) | Test Sheet Thickness | Torque-out (N•m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BF. BFS | M8 | 2 | 5052-H34 Aluminum | H-237-0518L | H-103-062L | 8027369 | 975200048 | 26 | 1760 | 2.5 | 18.1 |
| BF. BFS | M8 | 2 | Cold-Rolled Steel | H-237-0518L | H-103-062L | 8027369 | 975200048 | 34 | 2020 | 2.5 | 20.3 |
