IPFC-M5

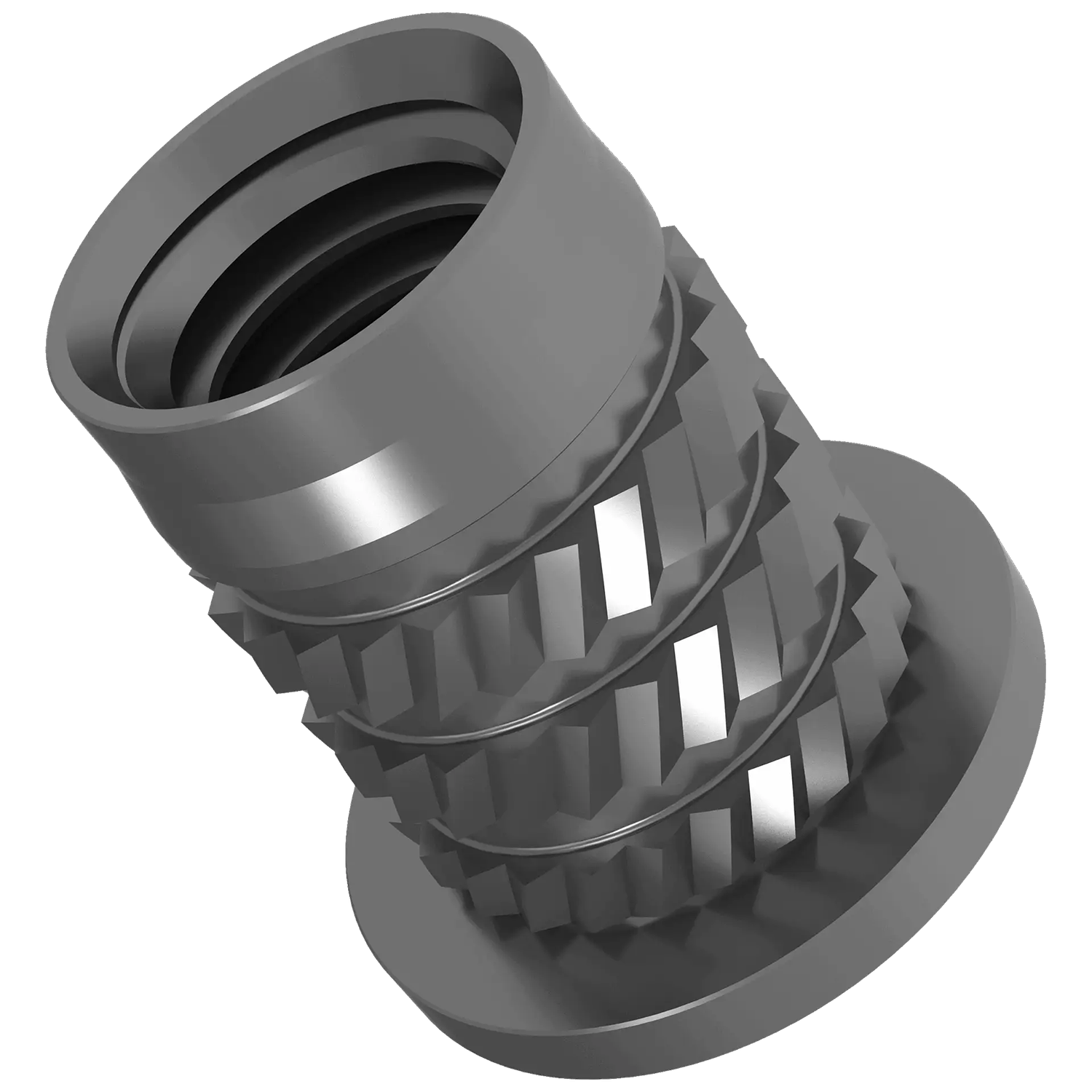

SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
IPFC-M5
SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
PRESS IN INSERT, STAINLESS
Specifications
- Gewinde Code
- M5
- Thread Size(x Pitch)
- M5 x 0.8
- Thread Specification
- 6H, ASME B1.13M
- Fastener Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested per ASTM A380
- Product Category
- SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
- Brand
- SI
- Installation Method
- Press-In
- PEM Product Family
- IPFC
- Product Type
- Einsätze

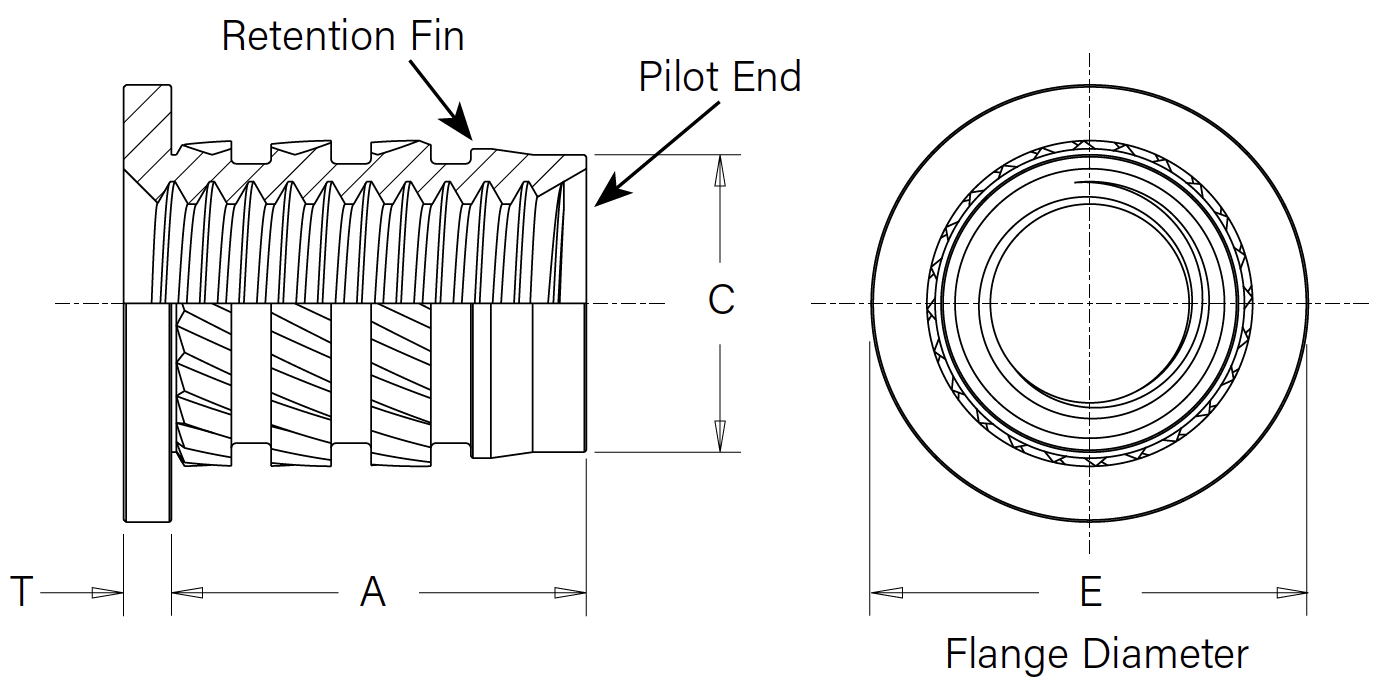

- A ± 0.13_mm
- 8.33mm
- E ± 0.13_mm
- 7.95mm
- Hole Dia. ± 0.05_mm
- 6.2mm
- Min. Hole Depth_mm
- 9.09mm
- C Max._mm
- 6.17mm
- T ± 0.13_mm
- 1.37mm
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Install. Force (kN) | Pullout (N) | Torque-out (N•m) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | M5 | ABS | 2 | 400 | 2.63 |
| IPA, IPB, IPC | M5 | Polycarbonate | 4 | 1242 | 7.9 |
