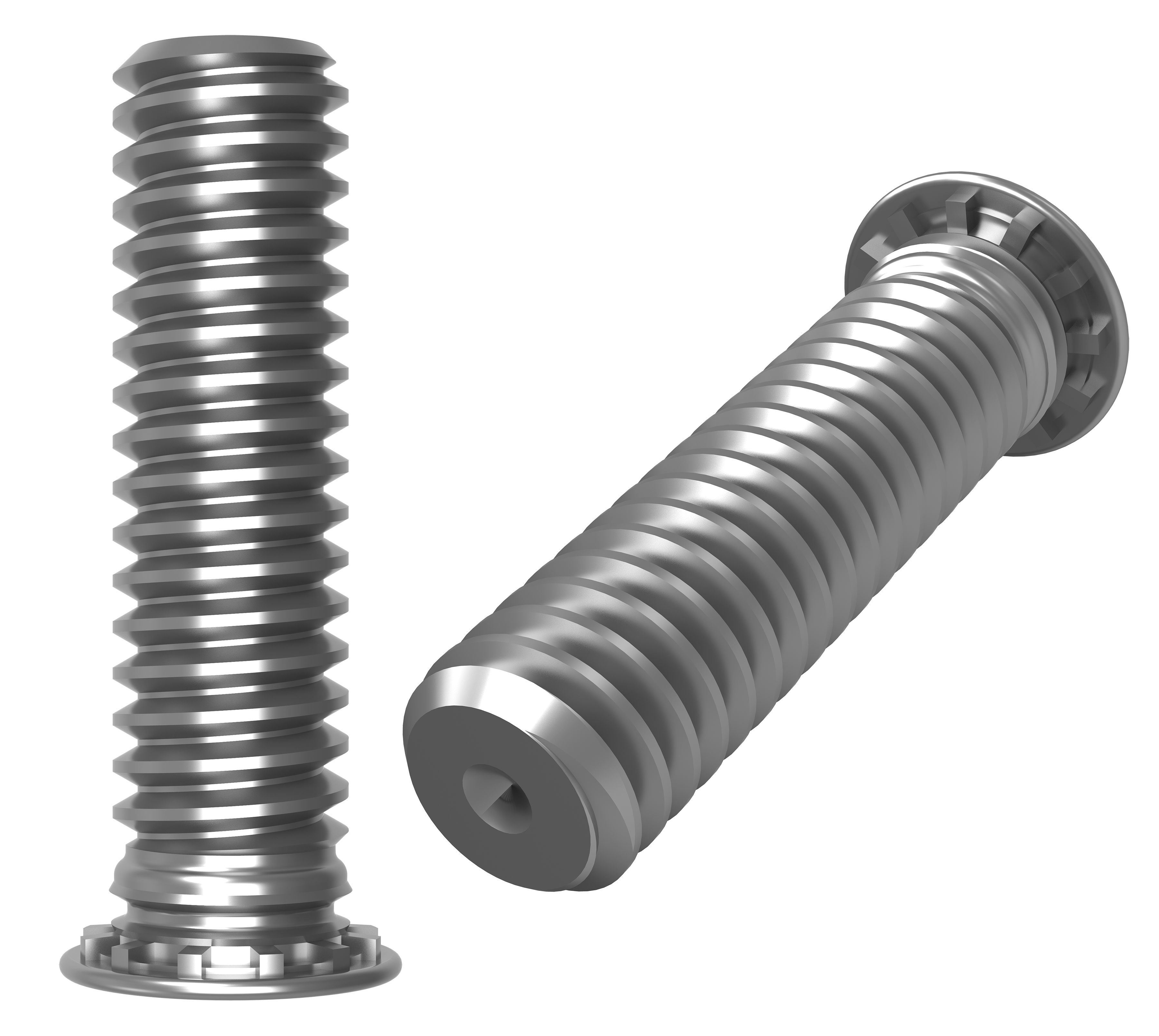

PEM® IFH™ Stud
Ingress repellent flush-head, self clinching stud
New IFH™ self clinching studs have been redesigned for maximum material flow into the stud undercut to create a water tight seal. Tighter tolerances and process controls produce a consistent reliable ingress repellent result every time.
- Meets ISO:20653-2014 ingress protection levels
- Ingress repellent capability, meeting IPX7 and IPX9K IP ratings
- No rubber gasket or sealants needed
- Testing completed in CR4 steel, 6082-T6 aluminum, and 304 stainless steel
To request samples:
- Download datasheet to find the part number you need to order.
- Click on the Request Samples button below.
