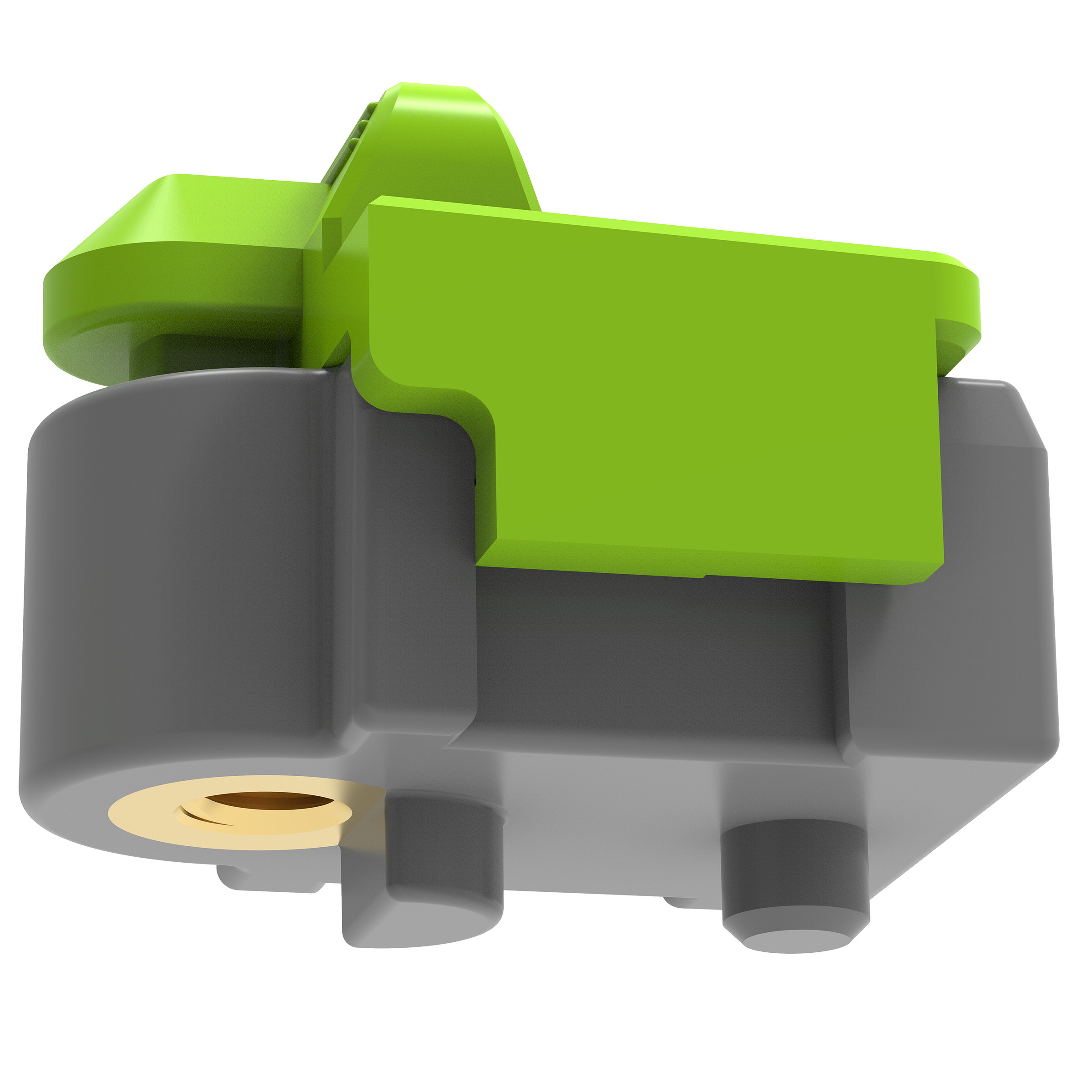

Tool-less PEM® M.2 Board Latch

Lock and Release with Speed and Simplicity

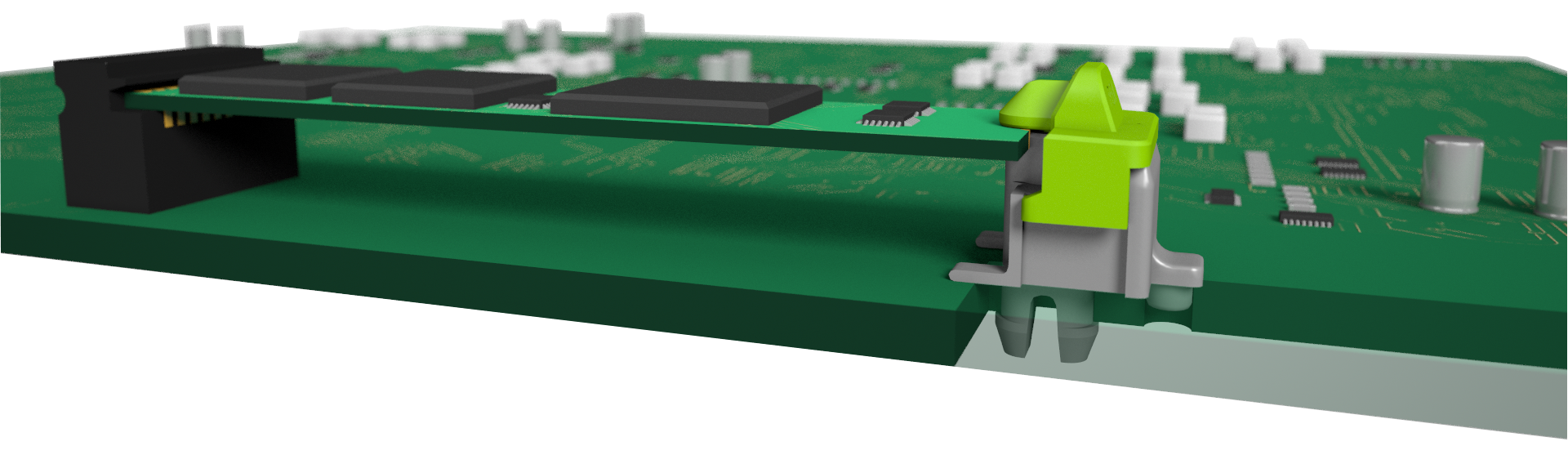

The PEM® M.2 Board Latch is designed for M.2 SSD applications in datacom servers. This tool-less connector provides quick, secure attachment of daughter boards to motherboards through a one-press mechanism.

It’s simple locking and release with no tools, no delays, and no compromises.

Key Features - At-A-Glance

The PEM® M.2 Board Latch combines secure attachment and tool-free convenience – designed
for the fast-paced demands of modern datacenter operations.

Three Ways to Mount

Choose the mounting type that fits your application:

Press-fit Installation
Permanent, tool-free attachment directly to the PCBA for streamlined assembly.
Rotary Latch
Enhanced holding power with a simple quarter-turn mechanism. Combines ease of use with added retention strength.
Screw-Fastening
Maximum strength when your application demands it, with the option for disassembly and reuse.

Supports Multiple M.2 Module Sizes

The M.2 Board Latch accommodates varying M.2 lengths and configurations without requiring new hardware or tooling modifications. Adjust mounting positions quickly to fit different board sizes – streamlining inventory management and production flexibility when your specifications
change.

Electrical Safety by Design

Short circuits on PCBAs cause failures and downtime. Metal fasteners introduce conductivity risks near sensitive circuit traces and components. The M.2 Board Latch solves this with precision-engineered plastic components that eliminate electrical hazards and delivers reliable mechanical performance and complete electrical isolation.

Why Do Engineers Choose the M.2 Board Latch?

Fast Tool-Free Installation and Removal

Traditional screw-based M.2 mounting requires tools and careful attention to prevent damage. The M.2 Board Latch eliminates these concerns with a simple press-to-lock, pull-to-release mechanism.
Installation is immediate – just press the M.2 SSD into place.
Removal is equally fast – pull the latch backward to release. No screwdrivers, dropped hardware, or training needed.

Better Serviceability

Technicians can swap M.2 modules in seconds instead of minutes – making it easy to lower your operational costs, increase uptime, and maximize your technical resources.

Electrical Isolation

Metal fasteners introduce electrical conductivity risks. The plastic construction of the M.2 Board Latch eliminates this hazard with complete electrical isolation and reliable mechanical performance.

Space-Efficient Design

Traditional fasteners need significant keep-out zones around mounting points. The M.2 Board Latch’s compact footprint lets you place components closer together to maximize board utility.

High-Cycle Durability

The M.2 Board Latch produces consistent locking force and reliable retention across thousands of cycles – giving you dependable board security and efficient replacement throughout the product lifecycle.

Customizable Colors

Improve assembly accuracy and maintain brand standards with customizable options – match corporate colors or create visual coding systems for different module types.

Part of PEM’s New Tool-less Fastener Lineup

The M.2 Board Latch joins PEM’s growing portfolio of tool-less solutions that are designed to reduce assembly time and improve serviceability across datacenter and server applications.
