PEM® CASTSERT® Press-in Inserts
For Die-cast Alloys and soft metals Less Than HRB 70 / HB 125

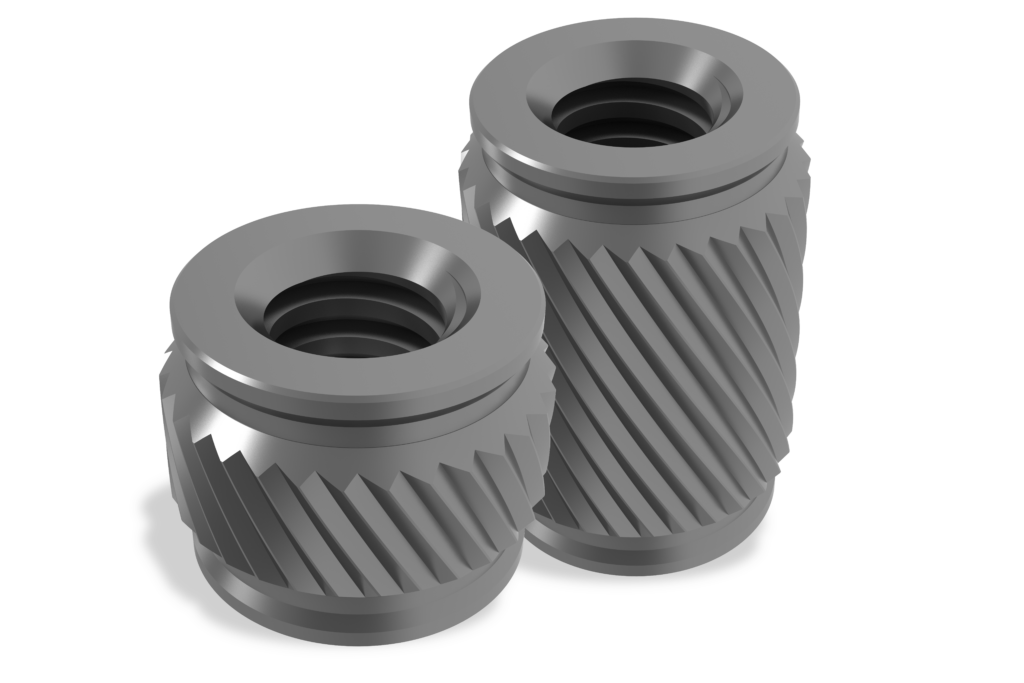

PEM® 300 Series Stainless Steel CASTSERT® inserts provide strong, durable metal threads in extruded aluminum and die-cast magnesium and die-cast aluminum. The overall, simple press-in, installation process for these inserts uses a flat punch and anvil to install all sizes and lengths, approximately 80% faster than other methods.

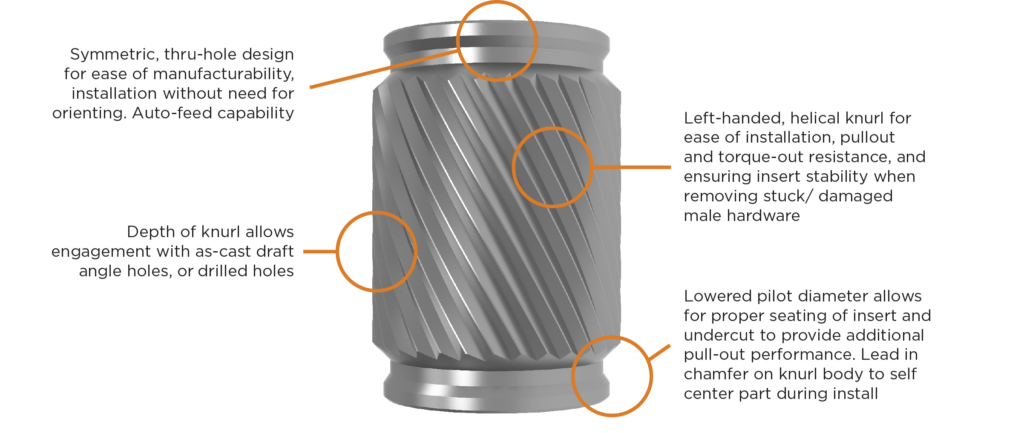

- Depth of knurl allows engagement with as-cast draft angle holes, or drilled holes.
- Process cost savings vs. coil inserts or thread tapping.
- Pull-out performance varies based on panel material, length of engagement and draft angle.
- Available in thread sizes #2-56 to 1/4-20 / M2.5 to M6 in two lengths per thread size.

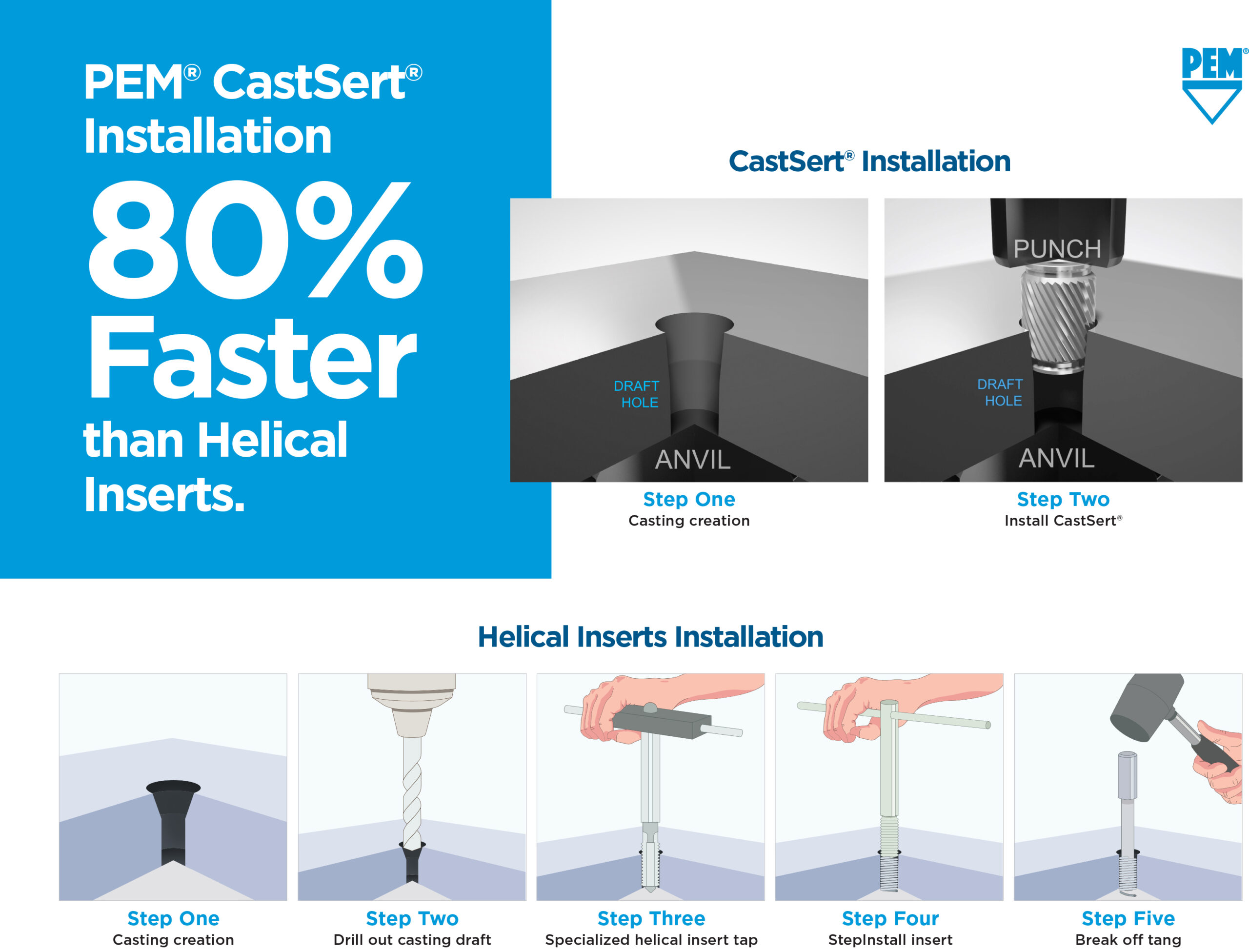

- Installed by simply pressing the inserts into drilled or as-cast holes. Installation is accomplished using any standard press at any time during the production process.
To request samples:
- Download datasheet to find the part number you need to order.
- Click on the Request Samples button below.
